Product description

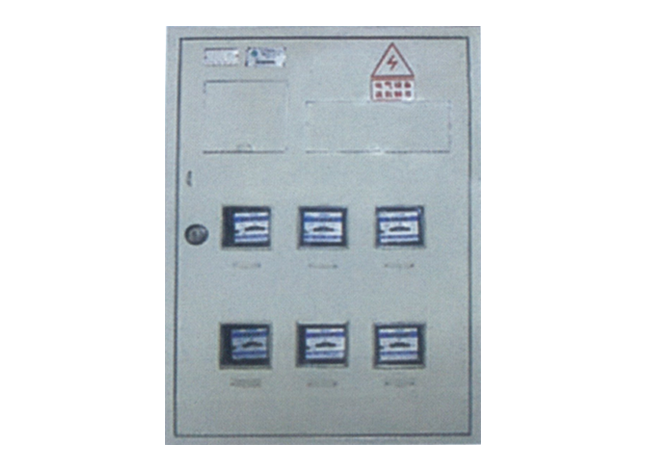

MJJG centralized meter box is used in new residential and the interior corridor renovation project, mainly used for electrical sector focus measurement. This product is mainly based on Shenyang Electric Power Bureau production requirements, divided into Ming outfit and dark outfit two forms, selection box 1.5mm cold-rolled steel plate, 2.0mm cold-rolled steel plate selection of two layers of the bottom and a box door, surface electrostatic spray paint. Observation window used poly fatty acid, to prevent the collision, high transparency; theft preventing locks and leave is added with a disposable lock of the nose: import and on both sides of the line hole is a circular hole, the middle is provided with a rectangular hole.
Incoming line switch selection (imported domestic breaker) feeder switch using imported or domestic micro isolation switch. Meter the scene from the Department of electrical installation, wiring in the cabinet according to the standard of electric power bureau with yellow, green, red, blue, BV10m square meters, wire wiring.
technical parameter
model | H | W | D | remarks |
MJJG-6 | 1020 | 630 | 200 | Ming bin |
MJJG-9 | 1300 | 630 | 200 | |
MJJG-12 | 1300 | 780 | 200 |
model | H | W | D | remarks |
MJJG-6 | 930 | 630 | 200 | Ming bin |
MJJG-9 | 1210 | 630 | 200 | |
MJJG-12 | 1210 | 630 | 200 |
